PinPoint-HR attP Placement Vector with MCS

Place a PinPoint attP site into a specific location in the target genome with the CRISPR/Cas9 System and this PinPoint HR Targeting Vector
  • Create isogenic cell lines
  • Achieve high-efficiency integration with no insert size-limit
  • Turn cell line construction into a high-throughput process

Products

Catalog Number Description Size Price Quantity Add to Cart
PIN400A-1 PinPoint-HR attP Placement Vector – Empty MCS for cloning HR Arms 10 µg $1234
- +

Overview

Overview

Take the first step in PinPoint Targeted Integration

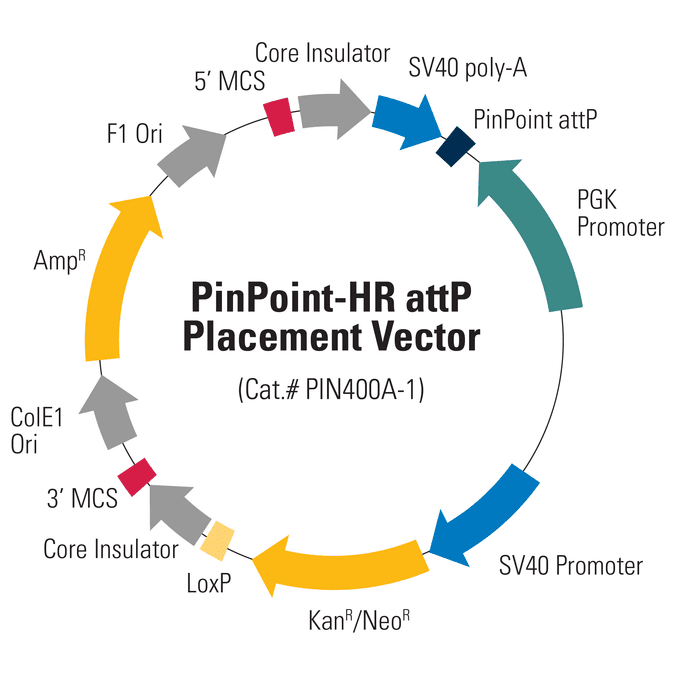

Leverage the highly targeted CRISPR/Cas9 System to insert a PinPoint attP site into a specific location in a target genome with the PinPoint-HR attP Placement Vector with MCS. In addition to the PinPoint attP site, the PinPoint-HR attP Placement Vector contains a neomycin resistance gene for selection of integrants and a PGK promoter. The PGK promoter is positioned so that, in the second step of PinPoint integration, the PGK promoter will drive a promoterless puromycin gene supplied by any of SBI’s PinPoint Donor Vectors.

PinPoint-HR attP Placement Vector with MCS With the PinPoint Targeted Integration System, you can ensure that only a single copy of your transgene is inserted into the genome.
  • Create isogenic cell lines
  • Achieve high-efficiency integration with no insert size-limit
  • Turn cell line construction into a high-throughput process

References

How It Works

How It Works

Placing a PinPoint attP site using the CRISPR/Cas9 System

To use the PinPoint-HR attP Placement Vector with MCS to place a PinPoint attP site at a specific location, you must first clone homology regions into the 3’ and 5’ MCSs of the PinPoint-HR attP Placement Vector. The homology regions should be adjacent to the site targeted by the Cas9 gRNA. Then co-transfect the PinPoint-HR attP Placement Vector with any of SBI’s Cas9 SmartNuclease and gRNA systems. Insertion follows the basic gene knock-in process (Figure 1).

Using an HR Donor Vector and the CRISPR/Cas9 System to knock-in a gene

Figure 1. Knocking-in a gene using an HR Targeting Vector. Step 1: Cas9 creates a double-stranded break(DSB) in the genomic DNA at a site that is complimentary to the gRNA. Step 2: The DNA repair machinery is recruited to the DSB. In the presence of an HR Donor with homology to the region adjacent to the DSB (blue areas of the genomic and vector DNA) homologous recombination (HR) is favored over non-homologous end joining (NHEJ). Result: The HR event leads to insertion of the region of the HR Donor Vector between the two homology arms—your gene-of-interest is integrated into the genome.

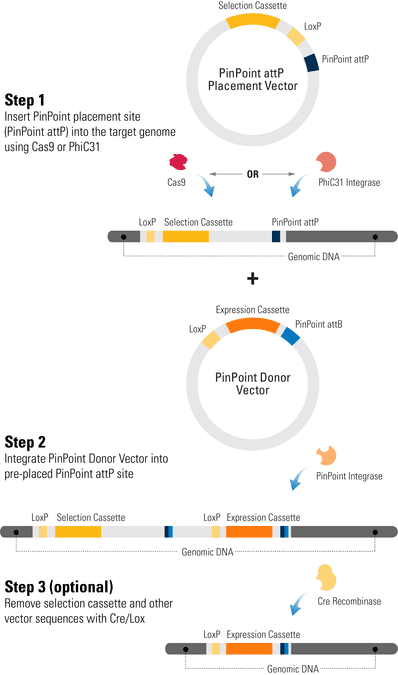

After using the CRISPR/Cas9 System to place the PinPoint attP site at your desired location, you can use the PinPoint Integrase and a PinPoint Donor Vector to insert your gene-of-interest into the PinPoint attP site.

A third optional step involves removal of extra vector sequences using the Cre/Lox system, leaving behind only your expression cassette and a single LoxP site.The PinPoint Targeted Integration System is a two- to three-step process

Additional advantages to using the CRISPR/Cas9 System for placing the PinPoint attP site

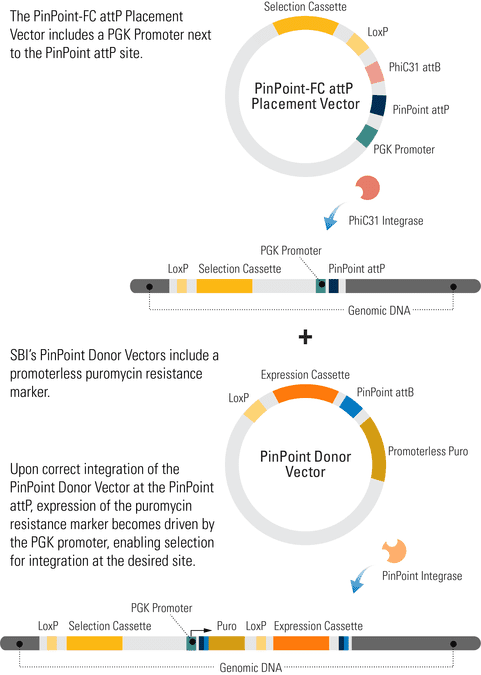

If you choose to use the PinPoint-HR attP Placement Vector to insert the PinPoint attP site, the PGK promoter on the Placement Vector combines with the promoterless puromycin marker on any of SBI’s PinPoint Donor Vectors, to enable puromycin selection only if the PinPoint Donor Vector integrates at the correct site.Select for correct integration of the PinPoint Donor Vector with puromycin selection

Supporting Data

Supporting Data

See the PinPoint Targeted Integration System in action

Efficient placement of the PinPoint attP site using the PhiC31 System

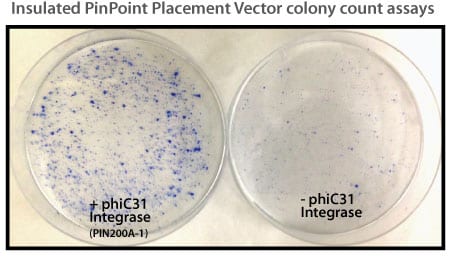

Figure 1. Efficient placement of the PinPoint attP site using the PhiC31 System. Step 1 of the PinPoint Targeted Integration System—the PinPoint attP site was placed into HEK293 cells using the PinPoint-FC Placement Vector (Cat.# PIN300A-1) and the PhiC31 Integrase (Cat.# FC200PA-1). Positive cells were selected with G418 (neomycin resistance) for fourteen days and six separate lines were picked and expanded. After eleven days, the cells were fixed and stained with a solution of 50% methanol plus 1% methylene blue. The plates were washed twice with PBS and allowed to air dry. Only the plate of cells that were transfected with the PhiC31 Integrase Expression Plasmid showed a robust number of cells.

Efficient placement of the PinPoint attP site using the PhiC31 System

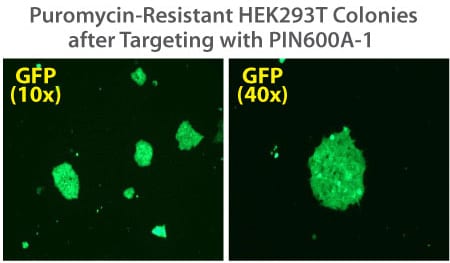

Figure 2. Targeted integration with the PinPoint Integrase and a PinPoint Donor Plasmid. Step 2 of the PinPoint Targeted Integration System—the cell lines created in Figure 1 were transfected with a Positive Control PinPoint Gene Donor Vector expressing GFP (Cat.# PIN600A-1) for precise integration. Unlike the R4 integrase used in a similar system, the PinPoint Integrase does not recognize pseudo-sites and will only integrate at its placed recognition sequence. This feature results in the increased efficiency of correctly retargeted cell lines compared to the R4 integrase system. The entire therapeutic gene expression cassette is active and fully insulated with cHS4 DNA elements.

The PinPoint Integrase mediated specific placement of the PinPoint Donor Vector

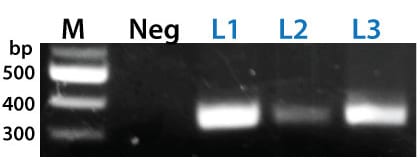

Figure 3. The PinPoint Integrase mediated specific placement of the PinPoint Donor Vector. We used a junction PCR assay to verify that the PinPoint Donor Vector was integrated at the correct site targeted to the correct site, amplifying across the PinPoint attL site (after PinPoint mediated integration, the plasmid-borne PinPoint attP and attB sites become genomic attL and attR sites). The appearance of bands in the L1, L2, and L3 lanes only indicate the predicted, PinPoint Integrase-mediated insertion of the PIN600A-1 Donor Vector at the placed PinPoint attP site with high precision.
