XPack-GFP-loaded HEK293 Exosomes

Deliver GFP to cells or simply track GFP-labeled exosomes with our ready-to-use XPack-GFP-loaded HEK293 Exosomes.
  • Powerful—enables a wealth of applications, including
    • Exosome labeling
    • Exosome cargo tracking
    • Exosomes as cargo delivery vehicles
    • Exosomes as biotherapeutics
    • Exosome-generating stable cell lines with protein cargo-of-interest

Products

Catalog Number Description Size Price Quantity Add to Cart
XPAK100EX-G XPack-GFP loaded HEK293 exosomes 50 µg Exosomes $668
- +

Overview

Overview

Easily label cells with GFP

Want an easy way to label cells with GFP? Looking for already GFP-labeled exosomes? SBI’s got you covered with our XPack-GFP-loaded HEK293 Exosomes. These isolated exosomes come pre-loaded with GFP and are ready for use in your experiments.

The XPack System at a glance:
  • Powerful—enables a wealth of applications, including
    • Exosome labeling
    • Exosome cargo tracking
    • Exosomes as cargo delivery vehicles
    • Exosomes as biotherapeutics
    • Exosome-generating stable cell lines with protein cargo-of-interest
  • Optimized—SBI developed the XPack peptide tag for robust exosome targeting
  • Reliable—based on SBI’s highly-cited, well-proven lentivector technology
  • Versatile
    • Two promoter options for expression in a wide range of cells
    • Comes as pre-built reporters (GFP, RFP, luciferase) or ready-to-customize cloning lentivectors
Choose the XPack Lentivector that’s right for you
 ReporterCMV Promoter (For most cell lines)MSCV Promoter (For hematopoietic and stem cell lines)
Customize with our cloning vector
XPAK510PA-1XPack CMV-XP-MCS-EF1α-PuroXPAK710PA-1 XPack MSCV-XP-MCS-EF1α-Puro
Label exosomes with pre-built reporters
GFPXPAK530CL-1

XPAK530PA-1

XPAK530VA-1
XPack CMV-XP-GFP-EF1α-PuroXPAK730PA-1

XPAK730VA-1
XPack MSCV-XP-GFP-EF1α-Puro
RFPXPAK531PA-1XPack CMV-XP-RFP-EF1α-Puro
LuciferaseXPAK532CL-1

XPAK532PA-1

XPAK532VA-1
XPack CMV-XP-Luciferase-EF1α-PuroXPAK732PA-1

XPAK732VA-1
XPack MSCV-XP-Luciferase-EF1α-Puro

References

How It Works

How It Works

Optimized for success

With XPack, SBI has developed an optimized N-terminal peptide sequence that targets the peptide—and any protein fused to it—to the inner surface of the exosome membrane. Our pre-built XPack-reporter constructs come in GFP, RFP, and luciferase options to cover a wide range of labeling needs.

Supporting Data

Supporting Data

XPack efficiently packages GFP into exosomes which can be used to deliver GFP to target cells

Part 1: Packaging GFP into exosomes with XPack

The XPack-GFP fusion protein is efficiently packaged as exosome cargo and delivered to target cells. HEK-293 cells were transfected with a plasmid encoding an N-terminal XPack-GFP fusion protein (Cat.# XPAK530PA-1). Twenty-four hours later, GFP localization patterns were visualized on a Leica DMI300B fluorescent microscope (Figure 1, upper panel). GFP expression patterns within transfected cells demonstrate a localization pattern characteristic of exosomal loading, with punctate spots along the cell periphery indicating budding vesicles and a brightly fluorescent spot in the cell interior corresponding to the multivesicular body (MVB), the site of exosome assembly and maturation prior to secretion.

After 48 hours, exosomes were isolated using ExoQuick-TC® and analyzed for GFP via Western blot (Figure 1, lower panel). Equal amounts of exosomal lysates (15 µg) were separated on gradient SDS PAGE gels and detected for GFP protein expression. The control for exosome loading was an anti-CETP antibody. XPack-GFP exosomes had very high amounts of GFP protein loaded as cargo.

XPack efficiently packages GFP into exosomes

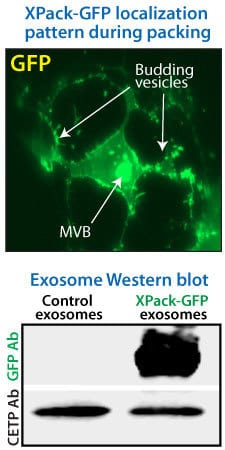

Figure 1. XPack efficiently packages GFP into exosomes. (Upper panel) XPack-GFP localization during packaging. (Lower panel) Western blot showing robust loading of GFP into the isolated exosomes.

Part 2: XPack-GFP Exosome Delivery to Target Cells

The XPack-GFP exosomes isolated as described above were then added to recipient HEK-293 cells to test for GFP delivery. Cells exposed to XPack-GFP exosomes were imaged by fluorescent microscopy, which showed subcellular GFP localization consistent with endocytosis of the XPack-GFP exosomes and delivery of the XPack-GFP protein cargo into the cell (Figure 2, left panels). Subsequently, these recipient cells were washed twice with PBS and cellular lysates were prepared for Western blot analysis using anti-GFP antibodies. Anti-GAPDH was used as a cellular protein loading control. The Western blot data further verified the successful delivery of GFP proteins to recipient cells via the XPack exosome engineering technology (Figure 2, right panel).XPack-GFP exosomes deliver GFP to target cells

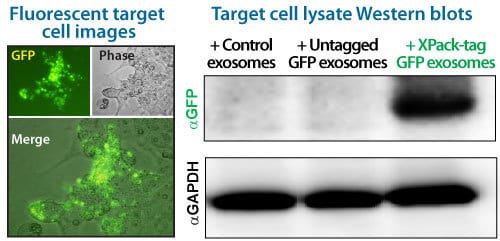

Figure 2. XPack-GFP exosomes deliver GFP to target cells. (Left panel) XPack-GFP localization during packaging. (Right panel) Western blot showing robust GFP delivery to target cells.
